真空机组系列
JZJHBA罗茨水环真空机组

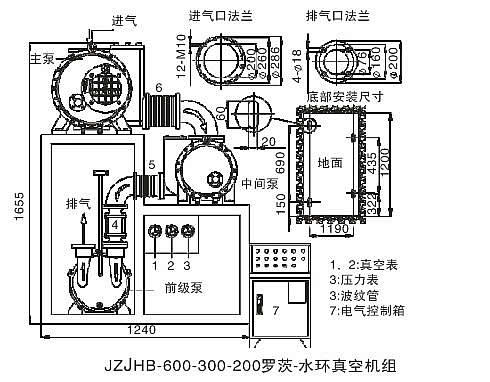

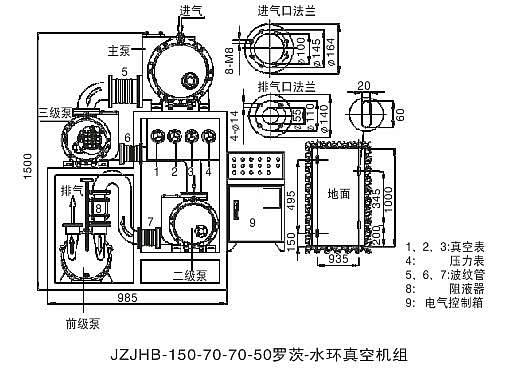

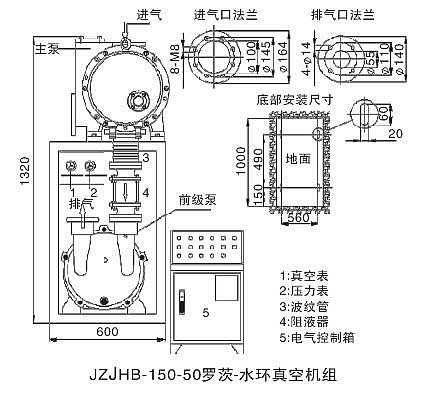

外形及安装尺寸
 | ||
 |  |  |
 |
 |
性能规格
主要性能参数
罗茨水环真空组(前级泵配2BA型)
| 型号/项目 Model/Name | 抽气速率 (L/S) Exhaust rate | 极限压力 (≤#Pa) Ultimate Pressure | 机级组成型号 Construction of Pump System | 总功率 (KW) Total Power | 进气口径 (mm) Inlet Diameter | 排气口径 (mm) Outlet Diameter | 重量 (Kg) Weight | ||
| 主泵 Main Pump | 中间泵 Holding Pump | 前级泵 Backing Pump | |||||||
| JZJHBA30.25 | 30 | ≤300 | ZJH-30 | 2BA-0.8 | 2.95 | 25 | 25 | 120 | |
| JZJHBA70.40 | 70 | ≤300 | ZJH-70 | 2BA-2 | 5.5 | 50 | 50 | 160 | |
| JZJHBA70.50 | 70 | ≤300 | ZJH-70 | 2BA-3 | 6.6 | 50 | 50 | 210 | |
| JZJHBA150.50 | 150 | ≤300 | ZJH-150 | 2BA-3 | 7.7 | 80 | 80 | 260 | |
| JZJHBA150.100 | 150 | ≤300 | ZJH-150 | 2BA-6 | 13.3 | 80 | 80 | 520 | |
| JZJHBA300.100 | 300 | ≤300 | ZJH-300 | 2BA-6 | 14 | 160 | 100 | 540 | |
| JZJHBA300.200 | 300 | ≤300 | ZJH-300 | 2BA-12 | 19 | 160 | 100 | 580 | |
| JZJHBA600.200 | 600 | ≤300 | ZJH-600 | 2BA-12 | 20.5 | 200 | 120 | 760 | |
| JZJHBA1200.200*2 | 1200 | ≤300 | ZJH-1200 | 2BA-12*2 | 37.5 | 250 | 120 | 1200 | |
| JZJHBA70.30.25 | 70 | ≤20 | ZJH-70 | ZJH-30 | 2BA-0.8 | 4.1 | 50 | 25 | 170 |
| JZJHBA70.70.35 | 70 | ≤20 | ZJH-70 | ZJH-70 | 2BA-2 | 6.6 | 50 | 40 | 220 |
| JZJHBA150.70.50 | 150 | ≤20 | ZJH-150 | ZJH-70 | 2BA-3 | 8.8 | 80 | 50 | 320 |
| JZJHBA150.150.100 | 150 | ≤20 | ZJH-150 | ZJH-150 | 2BA-6 | 15.4 | 80 | 80 | 540 |
| JZJHBA300.150.100 | 300 | ≤20 | ZJH-300 | ZJH-150 | 2BA-6 | 17.2 | 160 | 80 | 650 |
| JZJHBA600.300.200 | 600 | ≤20 | ZJH-600 | ZJH-300 | 2BA-12 | 26.5 | 200 | 120 | 870 |
| JZJHBA1200.600.200*2 | 1200 | ≤20 | ZJH-1200 | ZJH-600 | 2BA-12 | 39.5 | 250 | 120 | 1380 |
| JZJHBA2500.1200.200*2 | 2500 | ≤20 | ZJH-2500 | ZJH-1200 | 2BA-12*2 | 52.5 | 250 | 120 | 1870 |
| JZJHBA3300.1200.200*2 | 3300 | ≤20 | ZJH-3300 | ZJH-1200 | 2BA-12*2 | 55.5 | 320 | 120 | 2780 |
| JZJHBA70.70.30.25 | 70 | ≤1 | ZJH-70*2 | ZJH-30 | 2BA-0.8 | 4.9 | 50 | 25 | 290 |

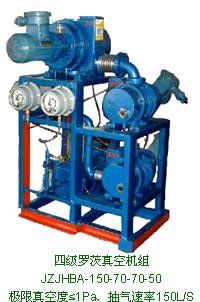

| JZJHBA150.70.70.50 | 150 | ≤1 | ZJH-150 | ZJH-70*2 | 2BA-3 | 10.7 | 80 | 50 | 320 |
| JZJHBA300.150.150.100 | 300 | ≤1 | ZJH-300 | ZJH-150*2 | 2BA-6 | 19.4 | 160 | 100 | 380 |
| JZJHBA300.300.300.200 | 300 | ≤1 | ZJH-300 | ZJH-300*2 | 2BA-12 | 27 | 160 | 1120 | 450 |
| JZJHBA600.600.300.200 | 600 | ≤1 | ZJH-600*2 | ZJH-300 | 2BA-12 | 35 | 200 | 120 | 870 |
| JZJHBA1200.600.600.200 | 1200 | ≤1 | ZJH-1200 | ZJH-600*2 | 2BA-12 | 38.5 | 250 | 120 | 1280 |
| JZJHBA2500. 1200.1200 200*2 | 2500 | ≤1 | ZJH-2500 | ZJH-1200 | 2BA-12*2 | 63.5 | 320 | 120 | 3400 |
